We have a working Nord Rack, and if everything went well you have a decent basic sound.

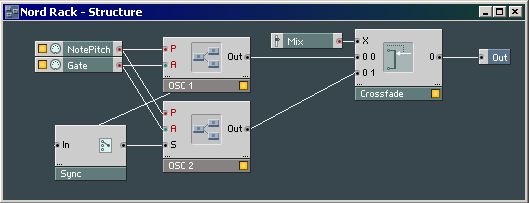

Figure 6. Structure with the Sync Switch and a Mix for the volumes

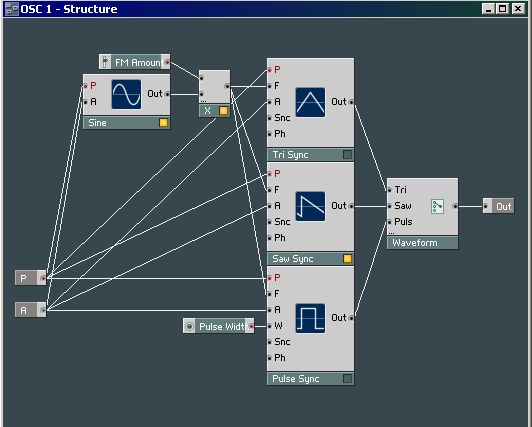

An OSC 1 Macro, with Frequency Modulation, Pulse Width Modulation for a Pulse and 2 other oscillators, with a switchable Waveform.

Figure 7. OSC 1 Structure

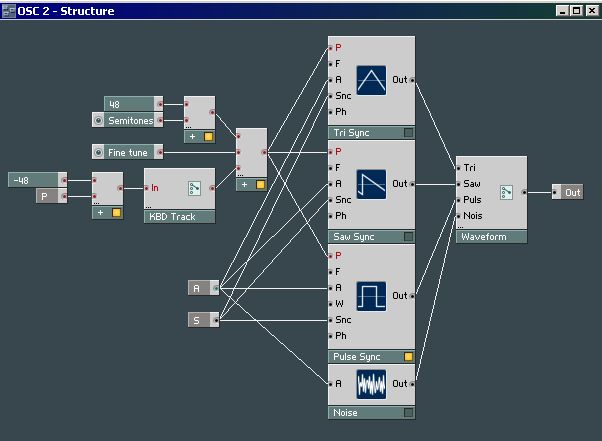

OSC 2, with an extra Noise oscillator, Semitones and Fine tune control and a Keyboard Track switch.

Figure 8. OSC 2 Structure

To eventually, get this little thing.

Figure 9. Oscillator 1 and 2 in the Panel

Is everything OK now? Yes and No. Later we have to implement the LFO's and you can't get around coming back into these Macro's. Some less and more important changes will have to be made.
