Fire up Reaktor and Open a New Ensemble.
Delete the existing Instrument from the [Ensemble - Structure] because we want to start from scratch. (Insert Instrument > _New - Empty)
Give it Nord Rack as a name or anything else that you like. Double click on the Nord Rack to get in the [Nord Rack - Structure] , wich is empty, at least for now.
The Nord Rack receives MIDI thus let's add a NotePitch (Insert Module > MIDI In > Note Pitch) and a Gate (Insert Module > MIDI In > Gate).
It needs an Out Port (Insert Module > Terminal > Out Port) to connect to the Audio Out in the "Ensemble - Structure".
It doesn't really matter in what order you insert these modules in the structure, as long as you connect them correctly. But we were building the OSC 1 so let's do a test with a Sine Oscillator (Insert Module > Oscillator > Sine) and insert him.
Connect the:
- NotePitch to the P input of the Sine.
- Gate to the A input of the Sine.
- Out of the Sine to te Out Terminal.
- And yes, also the Out of the "Nord Rack" Instrument in the Ensemble - Structure to the 1 and 2 output ports of the Audio Out.

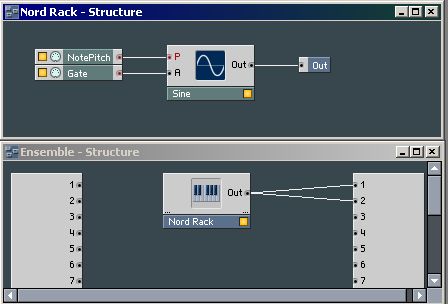

You should have something like this.
Now you can play notes with your computer keyboard. On an Azerty keyboard the DO note (pitch 60) is the "w" key (Qwerty, DO = "z")
